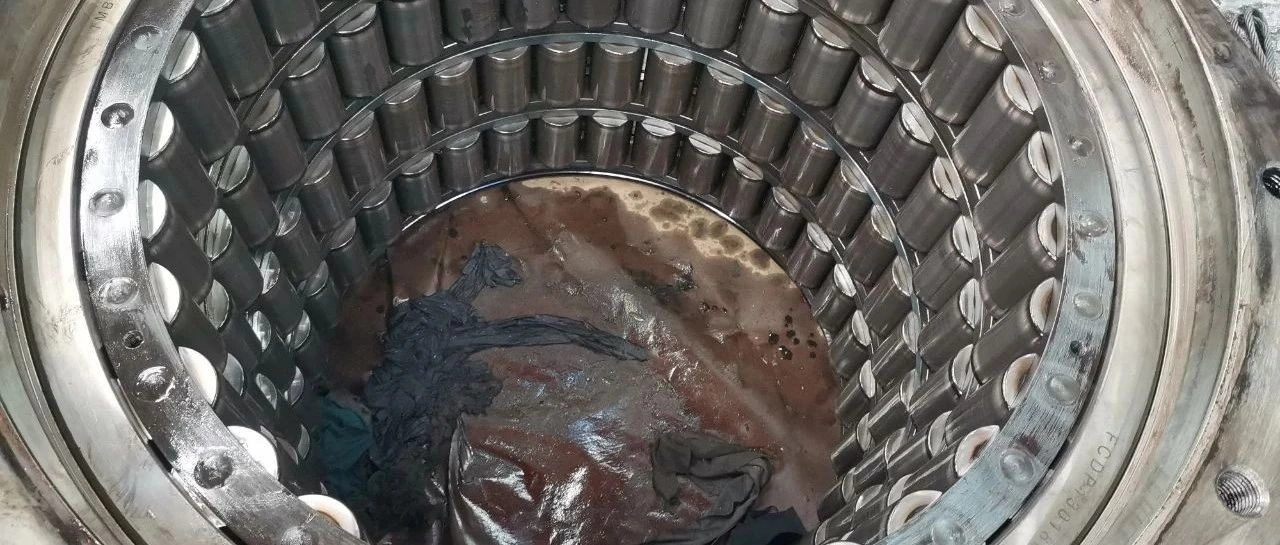

It is mainly composed of outer ring, inner ring, roller, cage and other parts. The outer ring raceway surface characterizes it as the bearing center for the spherical ball surface. It can adapt to the shaft, and the shell is not concentricity large, automatically adjusting the position of the shaft center so that the bearing can still work normally. This kind of bearing can withstand large radial loads and certain bi-directional axial loads, commonly used in heavy loads and shock loads in mechanical equipment.
TFL-Bearings is a large supplier of Spherical Roller Bearings in various sizes and shapes. The types of spherical roller bearings we supply include:
Sealed Spherical roller bearings:This kind of spherical roller has good sealing performance, which can effectively prevent water, moisture, etc., from entering the inside of the bearing and improve the service life and reliability of the bearing.
CA Spherical roller bearing:This type of spherical roller bearings has symmetrical rollers and retaining edges. CA means it has a one-piece, double-pronged machined cage made of brass.
E Spherical roller bearing:This type of spherical roller bearings contains two window-type stamping cages: the inner ring ends of the non-retaining edge, the inner ring middle non-retaining edge, and the middle retaining edge by the cage guided by the floating guide ring—symmetrical rolling body.
E1 spherical roller bearing:These spherical roller bearings contain two window-type stamped cages; the inner ring ends without retaining edges, the middle of the inner ring without retaining edges, and the middle retaining edges become floating guide rings guided by the inner or outer ring—symmetrical rolling body.
CC spherical roller bearing:This type of spherical roller contains two window stamping cages, an inner ring without a retaining edge, a floating guide ring guided by the inner ring, and a symmetrical rolling body.
MA Spherical roller bearing:This kind of spherical roller bearing has a two-piece outer ring guiding entity alloy copper to keep the frame, their inner ring center with blocking edge or no blocking edge, both sides with blocking edge, symmetrical type spherical roller.
MB Spherical roller bearing:This spherical roller bearing consists of a two-piece solid brass cage; it has an inner ring with retaining edges on both sides, a steel center retaining edge through which the cage is guided, and symmetrical rolling elements.
1. Heavy industry: Such as mining and metallurgical equipment.
2. Machinery manufacturing: All kinds of machine tools, machinery, etc.
3. Paper industry: Paper machines and other equipment.
4. Wind power generation: Related parts of wind turbines.
5. Marine industry: Power systems of ships, etc.
6. Cement, building materials industry: Related production equipment.
Spherical roller bearings are divided into the tapered bore and cylindrical bore; the spherical roller bearing models suffix with K indicates a tapered bore, and the taper is 1:12. Suffix with K30 indicates a tapered bore, and the taper is 1:30.
1. Tapered roller bearings: can withstand large radial and axial joint loads.
2. Cylindrical roller bearings: mainly bear radial load, strong bearing capacity.
3. Self-aligning roller bearings: has good centering, can adapt to the angle deviation between the shaft and the bearing seat, but can also withstand a large heavy load.
Spherical roller bearings are divided into the tapered bore and cylindrical bore; the spherical roller bearing models suffix with K indicates a tapered bore, and the taper is 1:12. Suffix with K30 indicates a tapered bore, and the taper is 1:30.
1. Tapered roller bearings: can withstand large radial and axial joint loads.
2. Cylindrical roller bearings: mainly bear radial load, strong bearing capacity.
3. Self-aligning roller bearings: has good centering, can adapt to the angle deviation between the shaft and the bearing seat, but can also withstand a large heavy load.
